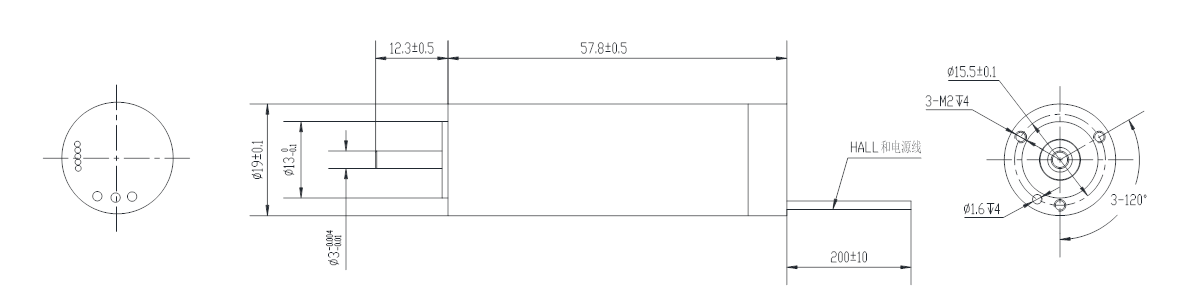

介電強度 ( Dielectric Strength )

360VAC/1S

絕緣電阻( Insulation Resistance )

100MΩ, 500VDC

環境溫度 ( Ambient Temperature )

-20°C   ~   +50°C

絕緣等級 (Insulation Class)

Class B

徑向間隙 ( Radial Play )

0.02mm@4N

軸向間隙 ( Axial Play )

0.14mm@4N

最大徑向負載 ( Max radial force )

8N距法蘭5mm

( 5mm From the flange)

最大軸向負載 ( Max axial force)

4N

極數  ( Number of poles )

2

2

相數  ( Number of phases )

3

3

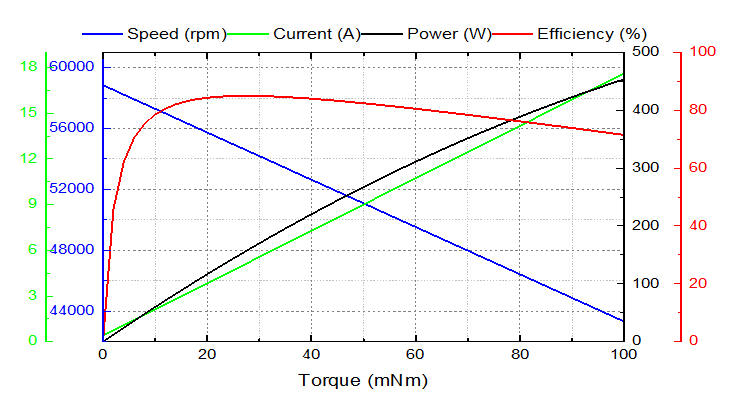

額定電壓 ( Rated  voltage )         ;

VDC

36

12

空載轉速 (No load speed)

RPM

58000

35000

空載電流 (No load current)

A

0.2

0.2

額定轉矩 ( Rated torque)

mN.m

23.9

11

額定電流 (Rated current)

A

4.5

3.5

額定速度 ( Rated speed )

RPM

53000

28000

額定功率 ( Rated power )        ;

W

130

30

額定效率 (Rated efficiency)

%

84.5%

83.7%

峰值轉矩 ( Peak torque )

mN.m

72

33

峰值電流 ( Peak current )

A

13.5

10.5

線電阻 ( Line to line resistance )

ohms@20℃

0.45

0.31

線電感 ( Line to line inductance )

mH

0.045

0.027

轉矩常數 ( Torque constant )

mNm/A

5.6

3.2

反電勢 ( Back EMF )

Vrms/Krpm

0.42

0.24

外殼-環境熱阻( Housing - Ambient thermal resistance)

K/W

11.6

9

電機熱時間常數(Motor thermal time constant)

S

840

780

繞組最高允許溫度(Max temperature of winding)

℃

155

155

電氣時間常數(Electrical time constant)

ms

0.1

0.087

紅色(Red)

AFR250-SY AWG26

霍爾電源正(Vcc)

藍色(Blue)

霍爾 W ( Hw )

綠色(Green)

霍爾 V ( Hv )

白色(White)

霍爾 U ( Hu )

黑色(Black)

霍爾電源負(GND)

黃色(Yellow)

UL1332 AWG20

U相 ( Phase U )

紅色( Red)

V相 ( Phase V )

黑色(Black)

W相 ( Phase W )
