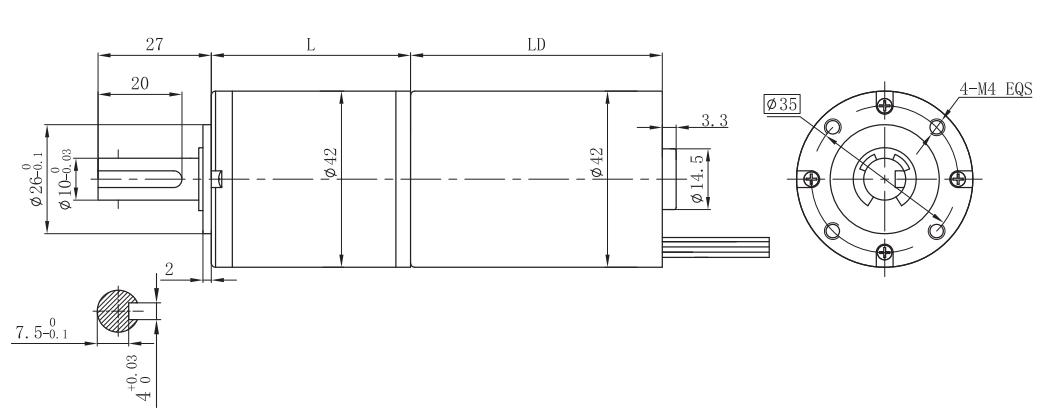

外形尺寸
資料下載
聯系合作BLDC Planetary Gear Motor （Ring Gear Material: Metal and Powder）
FL42CBL/42JXF100K | Φ42行星減速器，允許轉矩范圍：1N.m~10N.m |
42mm OD Planetary Gearbox, Permissible Load Range: 1N.m~10N.m |
| U | V | W | Vcc | Ha | Hb | Hc | GND |
| 黃Yellow | 紅Red | 黑Black | 紅Red | 藍Blue | 綠Green | 白White | 黑Black |
| UL1332 AWG22 | UL1430 AWG26 | ||||||
| 電機型號 | 極 數 | 相 數 | 額定電壓 | 空載轉速 | 額定轉速 | 額定轉矩 | 額定功率 | 峰值轉矩 | 峰值電流 | 電 阻 | 電 感 |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| VDC | r/min | r/min | mN.m | W | mN.m | A | ohms | mH | |||
| FL42CBL60-2442 | 8 | 3 | 24 | 4200 | 3200 | 120 | 40 | 360 | 6.3 | 1.2 | 1.6 |
| FL42CBL66-2459 | 8 | 3 | 24 | 5900 | 4000 | 150 | 63 | 450 | 7 | 0.75 | 0.8 |
配置FL42CBL60-2442無刷電機(LD=60mm) FL42CBL60-2442 BLDC Motor(LD=60mm)
| 減 速 比 Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | |
| 減速級數 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | |
| 減速器長度(L) Length(L) | mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 |
| 空載轉速 No-load speed | r/min | 1132 | 811 | 300 | 221 | 156 | 86 | 71 | 62 | 51 | 44 | 37 | 23 |
| 額定轉速 Rated speed | r/min | 863 | 618 | 229 | 168 | 119 | 65 | 54 | 47 | 39 | 34 | 28 | 18 |
| 額定轉矩 Rated torque | N.m | 0.4 | 0.56 | 1.4 | 1.9 | 2.6 | 4.3 | 5.2 | 6 | 7.2 | 8.3 | 10 | 10 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 25 | 30 |
配置FL42CBL66-2459無刷電機(LD=66mm) FL42CBL66-2459 BLDC Motor(LD=66mm)
| 減 速 比 Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | |
| 減速級數 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 減速器長度(L) Length(L) | mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| 空載轉速 No-load speed | r/min | 1590 | 1139 | 421 | 311 | 219 | 120 | 100 | 87 | 72 | 62 | 51 |
| 額定轉速 Rated speed | r/min | 1081 | 769 | 286 | 211 | 148 | 82 | 68 | 59 | 49 | 42 | 35 |
| 額定轉矩 Rated torque | N.m | 0.5 | 0.7 | 1.7 | 2.3 | 3.3 | 5.4 | 6.5 | 7.5 | 9 | 10 | 10 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 25 |
