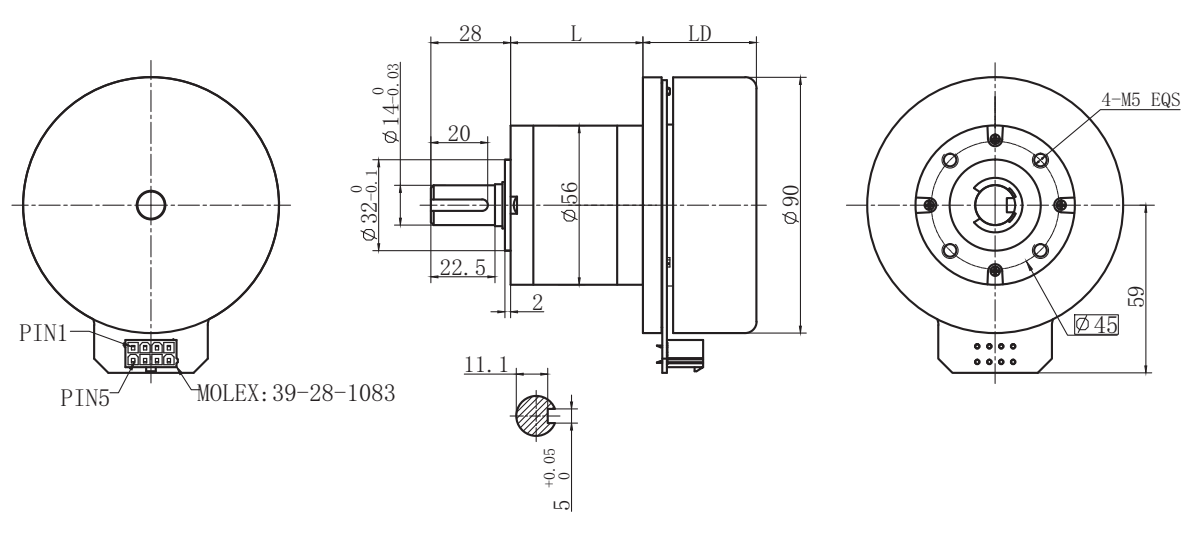

外形尺寸
資料下載
聯系合作BLDC Planetary Gear Moto （Ring Gear Material: Metal）
| 型號 | 范圍 |
| FL90BLW27/56JM450K | Φ56減速器，允許轉矩范圍：4.0N.m~45N.m 56mm OD Planetary Gearbox, Permissible Load Range: 4.0N.m~45N.m |
| № | Pin | 接插件型號Type | 功 能Functions | 說 明Description |
| 1 | PIN3 | MOLEX39-28-1083 | 霍爾電源正 (Vcc) | |
| 2 | PIN1 | MOLEX39-28-1083 | 霍爾U (Hu) | |
| 3 | PIN2 | MOLEX39-28-1083 | 霍爾V (Hv) | |
| 4 | PIN5 | MOLEX39-28-1083 | 霍爾W (Hw) | |
| 5 | PIN6 | MOLEX39-28-1083 | 霍爾電源負 (GND) | |
| 6 | PIN7 | MOLEX39-28-1083 | 相U (Phase U) | |
| 7 | PIN8 | MOLEX39-28-1083 | 相V (Phase V) | |
| 8 | PIN4 | MOLEX39-28-1083 | 相W (Phase W) |
| 電機型號 | 極 數 | 相 數 | 額定電壓 | 空載轉速 | 額定轉速 | 額定轉矩 | 額定功率 | 峰值轉矩 | 峰值電流 | 電 阻 | 電 感 |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| VDC | r/min | r/min | mN.m | W | mN.m | A | ohms | mH | |||
| FL90BLW27-24V-37130A | 22 | 3 | 24 | 3400 | 2700 | 0.457 | 130 | 1.6 | 23 | 0.21 | 0.19 |
| FL90BLW40-48V-16170A | 22 | 3 | 48 | 1950 | 1670 | 0.964 | 169 | 3 | 13 | 0.65 | 0.9 |
配置FL90BLW27-24V-37130A無刷直流電機(LD=27mm) FL90BLW27-24V-37130A BLDC Motor(LD=27mm)
| 減 速 比 Reduction ratio | 3.6 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | |
| 減速級數 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
| 減速器長度(L) Length(L) | mm | 40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 80.6 | 80.6 |
| 額定轉速 Rated speed | r/min | 750 | 635 | 507 | 208 | 180 | 150 | 117 | 96 | 63 | 52 | 44 | 38 | 28 | 22 | 18 | 14 |
| 額定轉矩 Rated torque | N.m | 1.5 | 1.8 | 2 | 4.8 | 5.6 | 6.7 | 8.5 | 10 | 14 | 17 | 20 | 24 | 32 | 36 | 45 | 45 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 |
配置FL90BLW40-48V-16170A無刷直流電機(LD=40mm) FL90BLW40-48V-16170A BLDC Motor(LD=40mm)
| 減 速 比 Reduction ratio | 3.6 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | |
| 減速級數 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |
| 減速器長度(L) Length(L) | mm | 40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 |
| 額定轉速 Rated speed | r/min | 464 | 393 | 313 | 128 | 111 | 93 | 73 | 60 | 39 | 32 | 27 | 23 | 17 |
| 額定轉矩 Rated torque | N.m | 3.1 | 3.7 | 4.2 | 10 | 12 | 14 | 18 | 22 | 30 | 37 | 43 | 45 | 45 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 90 | 90 | 90 |
